OEM HID Xenon Brands > Hella > Hella 5DC 009 060 00 D1S Ballast

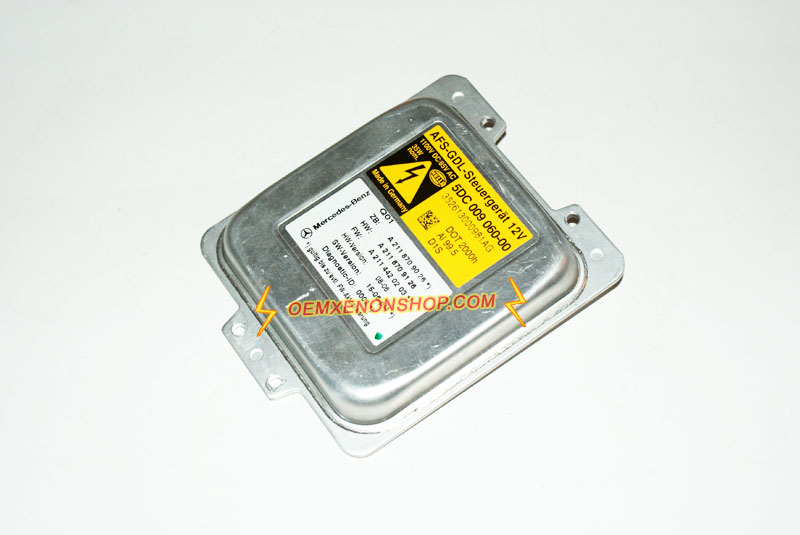

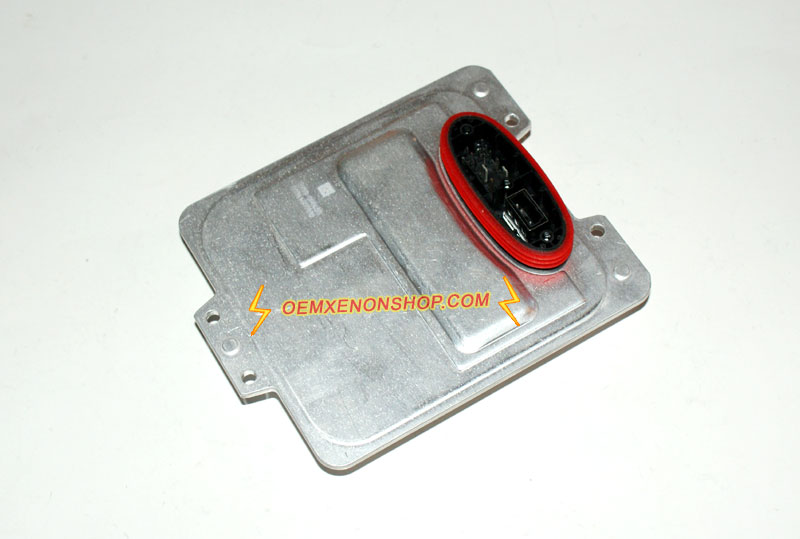

Original Genuine Made in Germany Hella Xenius 5DC-009-060-00 , 5DC-009-060-50 Xenon D1S AFS GDL Steuergerat D1S 12V Ballast.

D1S , DOT 2000h , e1 03 5085 , DC:1100V/AC:85V/P:35W- Mat:AL99.5

OEM Factory Fit Car

• 07-09 BMW 7
• 06-08 BMW 5
• 07-08 Cadillac Escalade
• 07-10 Mercedes E Class: E500, E350, E320, E63 AMG
• 07-10 Mercedes GL-Glass: GL 450
• 07-10 Porsche Cayenne
• Porsche Panamera
• 08-10 Mercedes ML-Class

The following is the corresponding part numbers for this type of ballast used on different cars:

• 5DC 009 060-00 (5DC00906000)
• 5DC 009 060-10 (5DC00906010)
• 5DC 009 060-50 (5DC00906010)
• 5DC 009 060-30 (5DC00906030)
• 5DC 009 060-20 (5DC00906020)
• 5DC 009 060-11 (5DC00906011)
• A 164 820 81 85 (A1648208185)
• A 211 870 91 26 (A2118709126)
• A 164 442 02 03 (A1644420203)
• A 164 870 17 26 (A1648701726)
• 955.631.19400
• 955.631.19401
• 955.631.19402

Xenon 5 electronic ballast/AFS control unit

With the Xenon 5 control unit, Hella combines the control electronics for VARILIS® functions and the ballast electronics for the operation of Xenon HID lamps. The entire electronics is installed in a compact package-space-optimized housing mounted directly onto the headlamp housing. Thus, intelligent lighting functions are achieved with a minimum number of control units.

Xenon 5 receives signals from the vehicle via a CAN bus connection, which denote the current driving situation and are necessary for the calculation of the control signals using complex algorithms. The control signals are transferred via a LIN bus to the intelligent stepper motors in the headlamp for adjustment of the headlamp leveling, the swiveling of the light module, and the adjustment of the drum of a
VARIOX® module. The control unit has a power driver, driving additional halogen bulbs with up to 55 W bulb power for the realization of static bend lighting or a cornering light. The concept of the XENON 5 control unit contains a driving situation-dependent power increase of the Xenon HID lamp for increased luminous flux, e. g. in the case of motorway trips.

A component-related diagnosis and an intelligent fail-safe strategy ensure that legal requirements are fulfilled in error-situations as well. With the Xenon 5 control unit, an optimized EMC behavior is obtained through full shielding.

If you find the right part you want to order here, don't hesitate to email us.

Our email address is: oemxenonshop@gmail.com

Ps: In order to get more effective and faster communication, please email us with the following details:

1. Please let us know where are you come from (We can check shipping cost to your place directly with this information.)

2. Email us the production year and model of your car.

3. It's better to show us the picture of the part you need or tell us the part number.

4. The order quantity you need.

we will reply you timely (within 5-10 minite, except the reason of different time zone ). We normally use express to do the shipment, 5-7 working days, the goods will arrive you.
