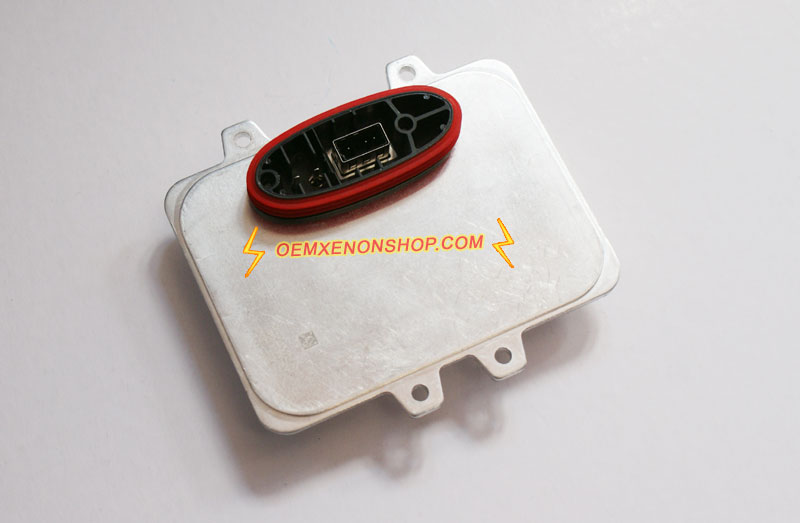

Original Genuine Made in Germany Hella 5DV 009 000 00 Xenon Vorschaltgerat 12V D1S 2PIN Ballast. This type of ballast is used on different models of cars.

DOT e1 033582 , 1100V DC/85V AC , 35W nom , Al.99.5

Hella Xenon 4.1 ballast

The Xenon 4.1 system is a consistent further development of the Xenon 4 system and has been produced in series since the beginning of 2005. It operates a Xenon HID lamp with integrated igniter (D1 lamp).

The Xenon 4.1 ballast has the following system features:

■ Increased temperature resistance through setup of the SMD components on aceramics substrate with heat-sink technology
■ Possibility for self-diagnosis in combination with intelligent lighting-control module
■ Additional volume and weight reduction
■ Improved EMC behavior through a fully shielded system
■ Optimized integrability in the headlamp system

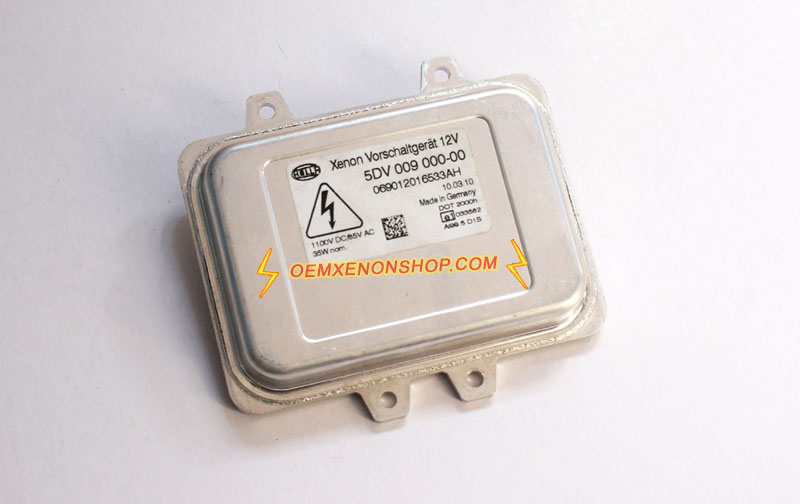

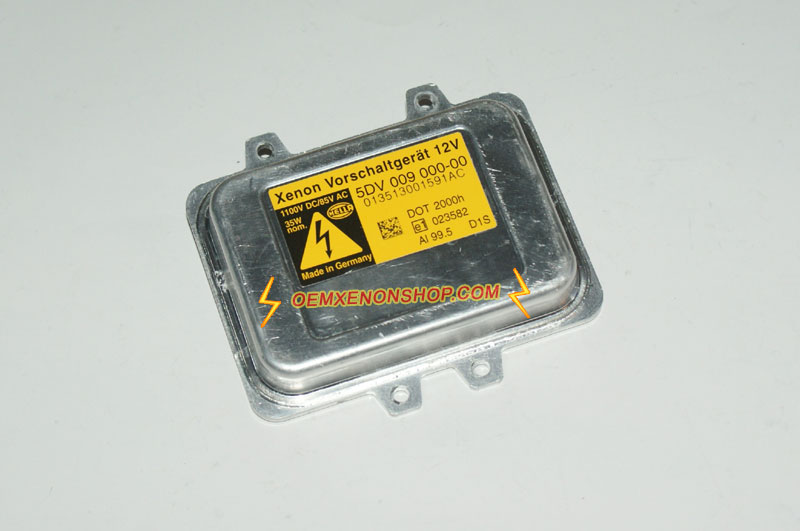

PS. This type of ballast has two kinds of stickers, one is yellow color, and the other is white color sticker. But their working parameter and part number are both same.

The following is the corresponding part numbers for this type of ballast used on different cars:

BMW – 63 12 6 937 223
BMW – 6 937 223
FORD – 1 376 950
FORD – 6M21 12K072AA
MERCEDE-BENZ – A 000 821 10 61
SAAB – 12 76 7670
Volkswagen – 5M0 907 391
Citroen/Peugeot – 6 224.J2
HYUNDAI – 92190-3L000
Renault – 7701209425
Land Rover – YWC 500480
VAG: 5M0 907 391
Cadillac: 12767670, 15782392

06-08 BMW E60 E61 5 Series 525/530/540/545/M5
• 07-08 Cadillac Escalade
• 07 08 Range Rover
• 07-08 JAGUAR XK8 XK
• 06-08 Lincoln Zephyr
